Stainless Steel Embossed Sheet
Stainless Steel Embossed Sheet
Stainless steel embossed sheet is formed by pressing the surface of the steel plate with the equipment and the die. According to the project processing needs, the material can be SS201/ SS304/ SS316, and the surface can be a hairline finish, mirror finish, sandblasting, and other surfaces. After all the surface treatment, re-processing patterns, embossed patterns of a variety of strong sense of three-dimensional. Stainless steel decorative embossed sheet is the first choice products for curtain wall or ceiling panels and is also the decoration industry trend product. Designers often like to use a gold mirror, rose gold, or another colored sheet to make a variety of 3D embossed decorative sheet metal, showing a personalized and artistic sense. It is suitable for decorating elevator cars, subway cars, all kinds of cabins, architectural decorations, ceilings, hotel lobby backgrounds, and metal curtain walls. Give people a pleasing visual effect.
Product Catalog & Instruction Manual
Color Selection of
Stainless Steel Embossed Sheet
Metal stainless steel embossed is a combination of the metal decoration process, which can be done in the mirror sheet, brushed sheet, or sandblasted sheet, pressure out a variety of different textures, and then color-plating. The finished product reflects the diverse beauty of stainless steel. The color stereoscopic embossing board has the most significant impact on the visual angle of decoration design, which is one of the current popular decorative panels. In pursuit of art, stainless steel sheet suppliers have also developed pure hand-hammering stainless steel ceiling panels. Using manual forging, the stainless steel surface was knocked into an irregular art ceiling. Each forging master’s striking force is not the same, so the vision pattern is different. Thus, the artistic sense is not the same. Such hand-forged pressed ceilings mostly rise to arts and crafts. Compared to the high cost, the price is also relatively high. The stainless steel decorative embossed sheet has this significant position in the construction project, many designers like the three-dimensional feeling of this kind of decorative material. The embossed wall panel is often the most attractive to people’s attention.
Specification of
Stainless Steel Embossed Sheet
Standard：JIS/AISI/ASTM/GB/DIN/EN
Type：Cold rolling
Thickness：0.3-3.0mm
Grade：201/304/316/430 etc…
Width：1000/1220/1500mm
Surface：PVD Coating+Mirror+Embossing
Length：2000/2440/3050mm （Customizable）
Color：Titanium, Rose Gold, Champagne Gold, Black Titanium Etc…
Thickness tolerance：±4-5C
Application：Subway Car, Ceiling
Service：Free Sample, One Stop Service
Packaging：Waterproof Paper + Wooden Case

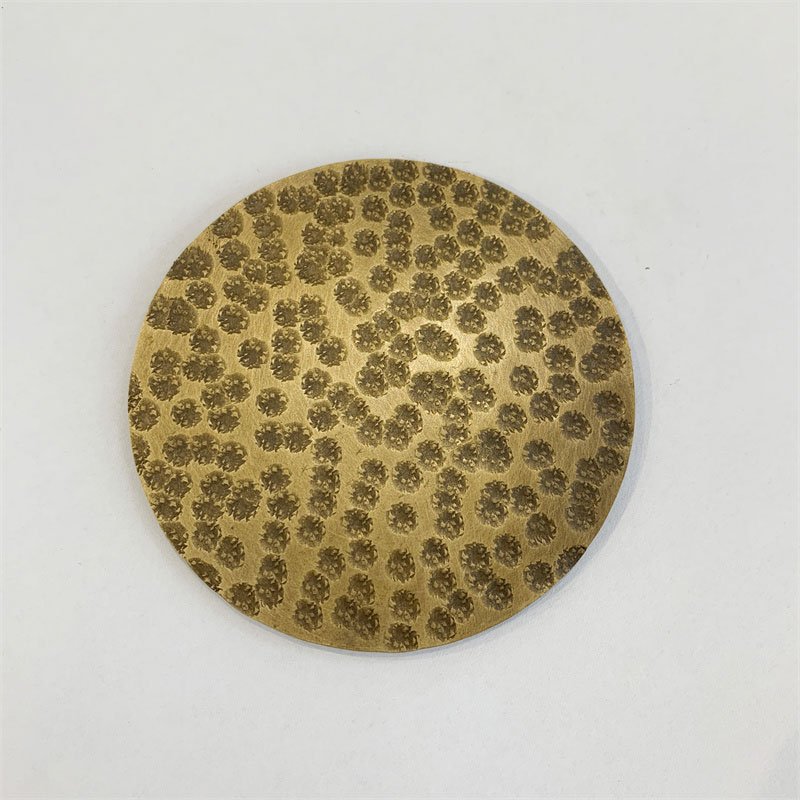

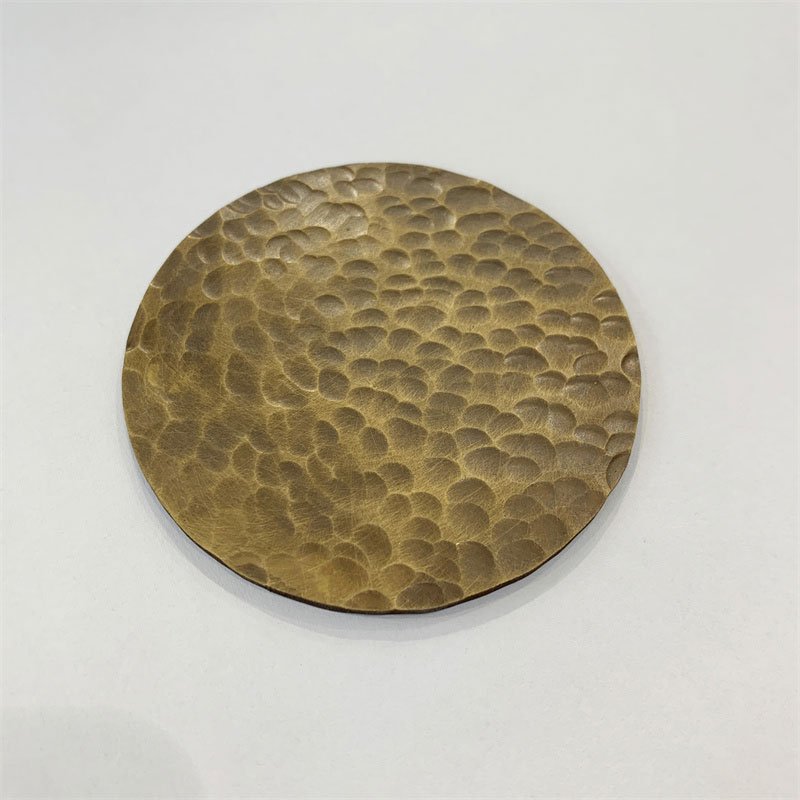

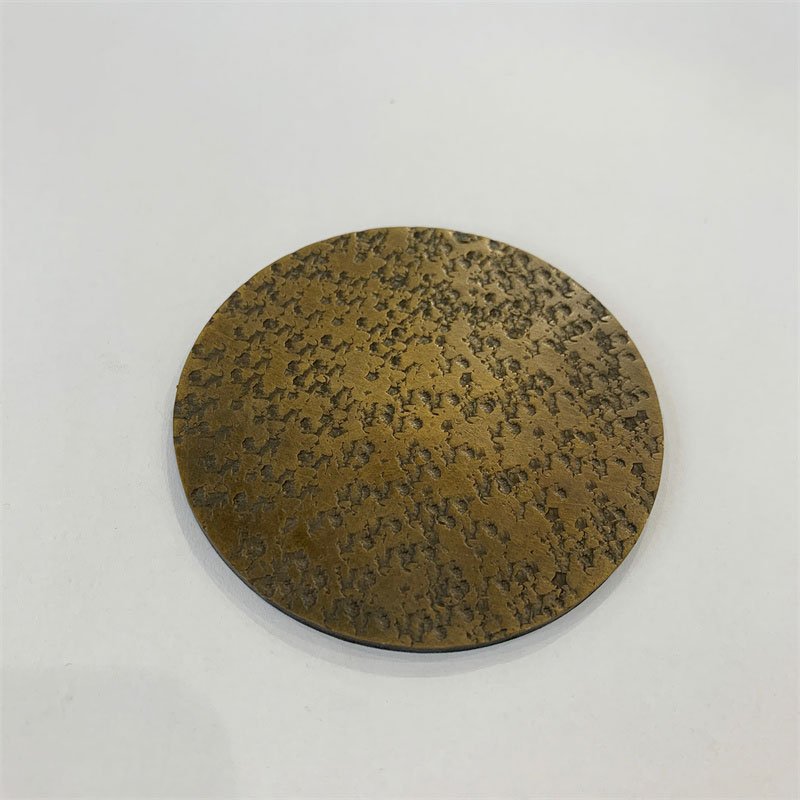

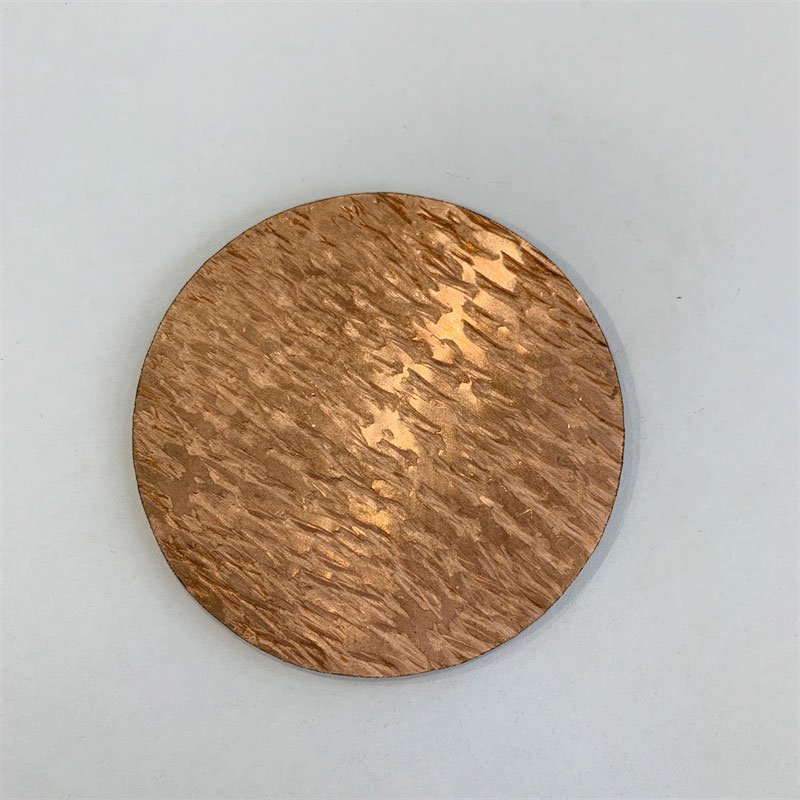

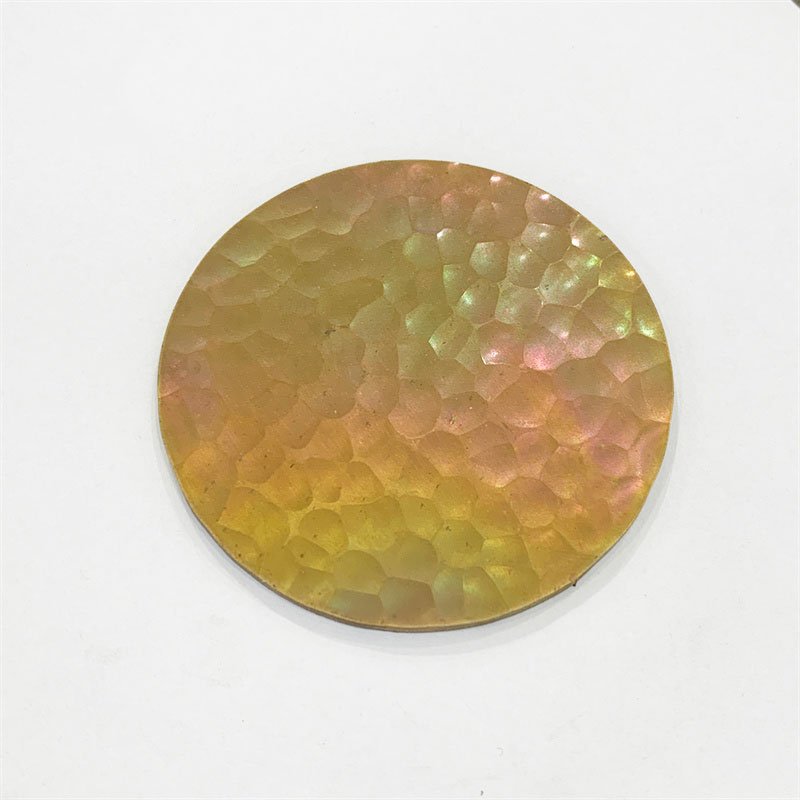

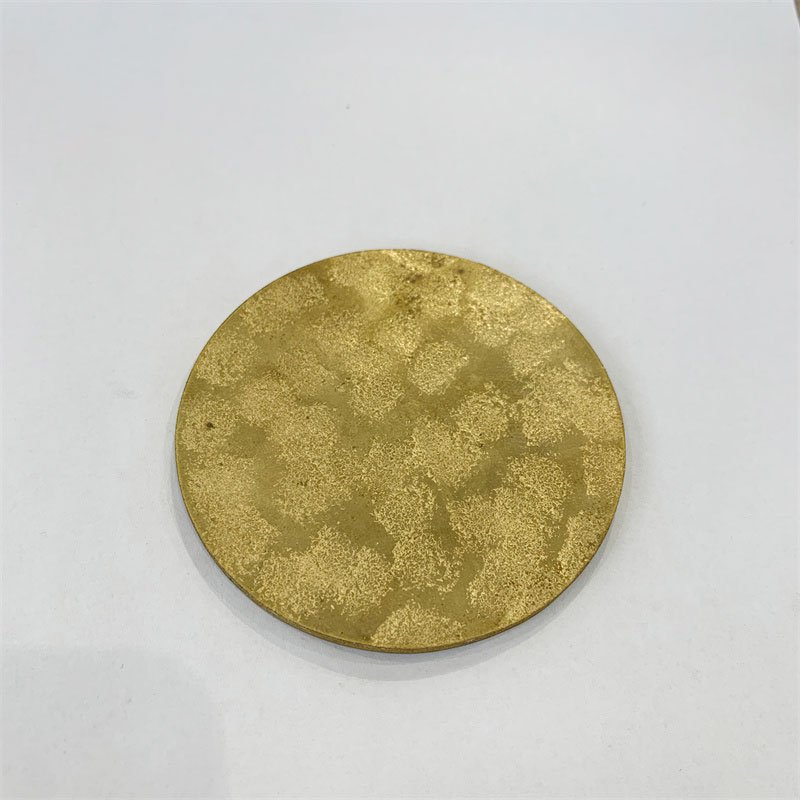

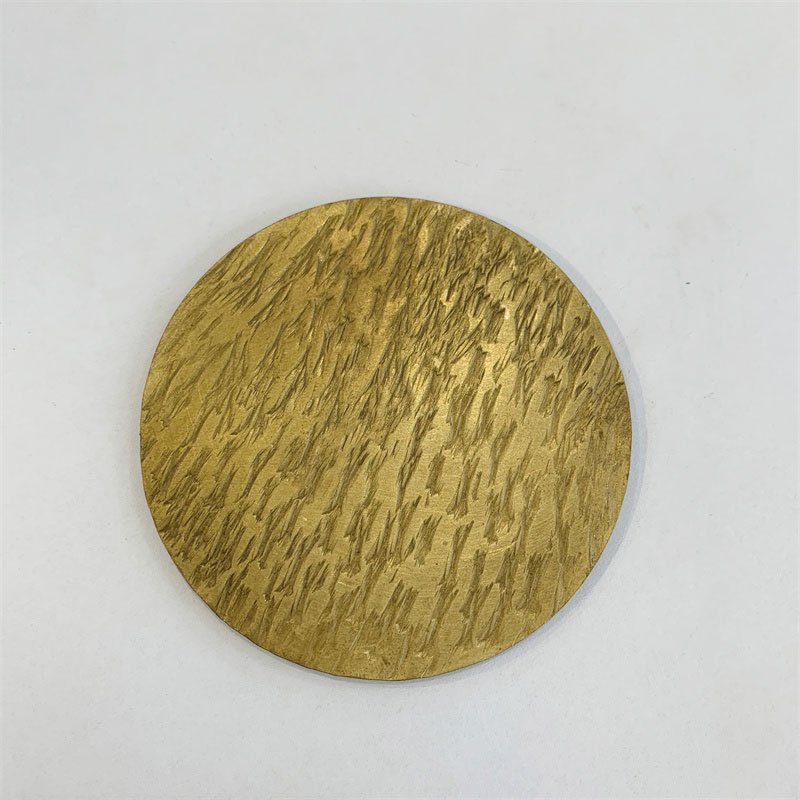

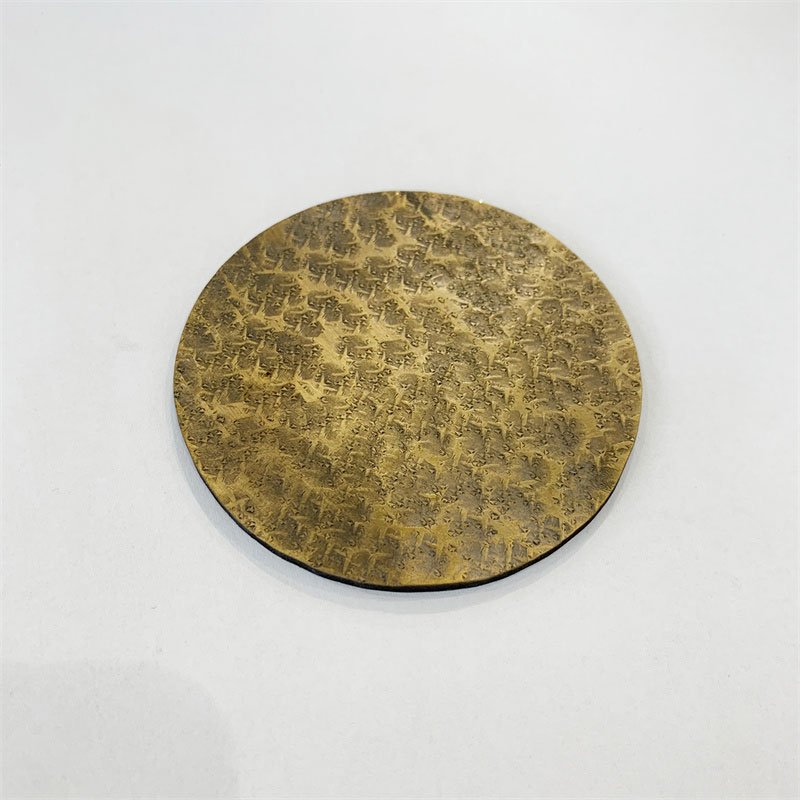

What is Hand-Hammered Stainless Steel Sheet?
Hand-hammered stainless steel sheets are a premium decorative material that blends traditional metal-forging techniques with modern stainless steel.
Unlike standard machine-embossed sheets, hand-hammered sheets are crafted by skilled artisans who use specialized hammers to strike the stainless steel surface, blow by blow. The subtle variations in the depth, size, and arrangement of each hammer mark imbue the metal with a unique, textured relief and a distinctive artistic interplay of light and shadow.
Unique Texture and Character
Unlike mechanically embossed panels, which feature repetitive, uniform patterns, each hand-hammered panel boasts a one-of-a-kind texture—infusing the material with a distinct artistic quality and the warmth of human craftsmanship.
Dynamic Light and Shadow Refraction
The irregular, hand-hammered surface creates a fluid, nuanced play of light and shadow through diffuse reflection. This effect is ideal for cultivating a luxurious, three-dimensional atmosphere within a space.
Enhanced Wear Resistance
The undulating, hammered surface not only bolsters the physical strength of the panel but also effectively conceals minor scratches and fingerprints that may occur during daily use, ensuring long-lasting durability.
Customization
The pattern and density of the hammer marks can be tailored to specific project requirements. Furthermore, the panels can be finished with PVD (Physical Vapor Deposition) coatings—available in shades such as rose gold, champagne gold, black titanium, or bronze—and treated with an anti-fingerprint finish.
various materials of
Stainless Steel Embossed Sheet
The metal surface of stainless steel brushed sheet is endowed with a unique rhythm of life. It is a reflection of modernity and technology in interior design. The meticulously polished brushed patterns present delicate layering changes under the carving of light. From the curtain walls of modern buildings to the panels of high-end appliances, from elevator cars to fashionable furniture, brushed stainless steel silently guards the quality of space with its wear-resistant and durable characteristics. Every brushed pattern is a witness to the spirit of craftsmanship, and every touch can feel the most authentic texture of the metal. The metal surface of stainless steel brushed panels is endowed with a unique rhythm of life. It is a reflection of modernity and technology in interior design. The meticulously polished brushed patterns present delicate layering changes under the carving of light. From the curtain walls of modern buildings to the panels of high-end appliances, from elevator cars to fashionable furniture, brushed stainless steel silently guards the quality of space with its wear-resistant and durable characteristics. Every brushed pattern is a witness to the spirit of craftsmanship, and every touch can feel the most authentic texture of the metal.
201 stainless steel
Economy oriented preferred, suitable for budget constrained interior decoration projects.
The embossed texture is clear and can present popular patterns such as diamond and pearl patterns.
The embossed texture is clear and can present popular patterns such as diamond and pearl patterns.
304 stainless steel
High end decoration preferred, containing 8% nickel element to significantly enhance rust prevention ability.
The pattern has a stronger sense of three dimensionality and is durable without deformation.
Perfectly adapted to high standard places such as outdoor curtain walls and hotel lobbies.
Specially recommended for places with high hygiene requirements such as food processing areas and medical environments
Material Selection Suggestions
- Temporary exhibition and drying indoor space for short-term use -201 embossed board.
- Permanent building decoration, humid environment -304 embossed board.
- It is recommended to use 316L embossed board in coastal areas.
By selecting materials reasonably, the decorative effect can be guaranteed while extending the service life, perfectly combining embossing art with practical functions.
Application of
Stainless Steel Embossed Sheet
The decoration material changes with each passing day. Stainless steel has always been one of the ways designers use it to extend a limited space. Different stainless steel surface treatment processes can make the same plate highlight other visual effects and hand characteristics.
Stainless steel embossing plate is a metal plate pressed by the embossing process. Under the physical extrusion mode, the metal sheet has various exquisite concave and convex patterns on the plate surface through the large-scale numerical control mechanical equipment and the precision pattern mold, commonly known as a metal embossing plate.
The metal surface pressed a variety of different textures, reflecting the different beauty of stainless steel. Hammering the stainless steel embossing board can also produce a light and shadow effect in the space. The pattern is stamped on the stainless steel plate by forging and hammering to form the metal embossing board, and the stereoscopic visual and artistic sense is immediately presented in front of the eyes.
Stainless steel is a cold and intricate material, but a variety of surface treatment processes show the space’s delicate and elegant temperature. This is a romantic stainless steel material.
The surface is clean, bright, and unique, with a typical metal fashion and modern sense of art.It is suitable for ceiling decoration, elevator board decoration, architectural decorative art walls, background walls, building curtain walls, etc.
Installation Guide for Embossed Metal Panels
To ensure that stainless steel decorative panels achieve the desired three-dimensional play of light and shadow, as well as long-lasting durability, we recommend that installation be carried out by a professional team specializing in metalwork or interior decoration. The following outlines the standard installation procedures and operational recommendations for wall cladding, elevator interiors, and ceiling applications.
Adhesive Bonding to Substrate
Applicable Scenarios: Interior feature walls, elevator car interiors, storefront facades, and column cladding.
Substrate Requirements: The substrate surface must be level, dry, and structurally sound (typically consisting of 12mm–18mm flame-retardant plywood, OSB, or cement fiberboard).
Installation Steps:
Layout and Marking: Snap reference lines on the substrate to ensure the panels are installed perfectly plumb and level.
Adhesive Application: Apply a high-strength structural adhesive (such as a neutral-cure silicone structural adhesive) evenly to both the back of the panel and the substrate. Use high-strength double-sided tape to provide initial fixation.
Dry-Hanging System
Applicable Scenarios: Large-scale high walls, exterior facades, major public construction projects, or areas requiring future disassembly for maintenance.
Structural Features: The back of each panel is either bent to form an integrated hook, or fitted with aluminum alloy/stainless steel brackets via welding or riveting.
Installation Steps:
Steel Framework Installation: Install a framework of galvanized steel rectangular tubing or aluminum alloy profiles onto the wall surface.
Alignment: Engage the hooks or brackets on the back of the panels with the corresponding mounting points on the framework.
Fine-tuning and Securing: Use bolts to make precise adjustments for flatness and lock the panels in place, ensuring uniform gaps between them.
Key Installation Notes
1. Protective Film Handling
Do not remove the protective film prematurely: Keep the factory-applied double-layer protective film in place throughout the entire process—including cutting, bending, installation, and any necessary tapping or pressing—to prevent scratches on the panel surfaces, including recessed or raised areas.
Timing for film removal: Remove the protective film only after all construction work is complete and the site has been cleaned. It is recommended to remove the film within 45 days of installation to prevent adhesive residue.
2. Grain Direction & Layout Numbering
For large-scale projects, we mark the back of each panel with an installation direction arrow and a reference number. Please ensure that all panels are installed with the arrows pointing in the same direction to maintain a consistent diffuse light and shadow effect.
3. Cleaning Agents: For on-site cleaning, use a soft cloth and a neutral cleaning agent. Do not use any cleaning products that contain oxalic acid, strong acids or bases, or abrasive particles.
Process of
Stainless Steel Embossed Sheet
Material Preparation
Select a suitable stainless steel plate as the substrate. The commonly used stainless steel plate materials include 304, 316, etc., which have corrosion resistance and high strength.
Design Pattern
JYF Metal can provide many pattern styles for your options, and corresponding pattern patterns can be designed according to engineering needs.
Embossing Process
Mechanical or chemical methods are used to emboss stainless steel plates. The commonly used equipment for mechanical embossing includes embossing machines, embossing rollers, etc; Chemical embossing involves transferring patterns onto stainless steel plates through etchants and molds.
Surface Treatment
Stainless steel embossing can be used for many surface treatments, such as polishing, sandblasting, etc., to make the surface smoother and more beautiful.
Color Coating (Optional)
According to engineering needs, color coating can be applied to the embossed board (such as titanium, rose gold, black titanium, etc.). Common treatment methods include electroplating, spraying, etc.
Quality Inspectio
Conduct quality inspection on the finished product, including checking the clarity of patterns, consistency of pattern lines, and surface smoothness.
Packaging And Transportation
Pack qualified stainless steel embossed plates in foam and wooden cases to prevent scratches and facilitate transportation.
Why Partner with JYF Metal for Your Embossed Sheet Projects?
An embossed stainless steel sheet is far more than a decorative surface. Its pattern depth, surface finish, structural flatness, and batch consistency directly determine how the material reflects light and performs in a finished architectural space.
At JYF Metal, we do more than just supply decorative stainless steel sheets—we act as your technical manufacturing partner from concept to project handover. Whether you are sourcing embossed panels for feature walls, high-traffic commercial interiors, elevator cladding, or bespoke metalwork, we work closely with your team to deliver practical, site-ready manufacturing solutions.
Made to Your Design
Every project has its own design language. At JYF Metal, we work with your drawings, samples, and specifications to develop embossed metal sheets that fit your vision. From pattern selection to sheet dimensions and surface finishes, we focus on the details that make your design work in the finished space.
Built Around Your Project
We understand that architectural metalwork rarely comes down to a single material. Embossed sheets may need to coordinate with wall panels, ceilings, partitions, or other custom metal elements. Our fabrication capabilities allow us to discuss these requirements together, helping you source materials that work as part of a complete project.
Practical Technical Support
A design needs to work beyond the drawing. Our team can discuss material options, fabrication details, sheet dimensions, and installation considerations with you before production begins. By addressing these points early, we help make the transition from design concept to finished metalwork more straightforward.
Ready for Larger Orders
For commercial and architectural projects, consistency across multiple sheets is essential. We understand the importance of coordinating specifications and finishes across an order, particularly when materials will be installed side by side across large surfaces. Our aim is to help project teams source embossed metal sheets with consistent requirements from the initial discussion through production.
Detail in Every Sheet
Embossed patterns bring depth, texture, and character to a space, but the final result depends on more than the pattern itself. Material selection, surface appearance, dimensional accuracy, and finishing all matter. We pay attention to these details throughout the manufacturing process to help achieve a finish that meets your project specifications.
One Team, Clear Communication
Choosing a metal supplier also means choosing a team to work with throughout the project. We value clear communication on specifications, finishing requirements, and production details, so architects, designers, contractors, and purchasing teams can move forward with a clearer understanding of their material requirements.
FAQ
A1:Stainless steel embossing sheets find applications in various industries such as architecture, interior design, automotive, appliance manufacturing, and signage. They are used for decorative purposes, branding, and adding texture to surfaces.
A2:The surface of stainless steel embossed plates features unique textures and patterns. These special textures and patterns give the stainless steel embossed plates a distinctive aesthetic and artistic appeal, making them suitable for various indoor and outdoor decoration projects.
A3:Stainless steel embossed panels are based on metal materials and create unique surface textures through the embossing process, suitable for decoration and architectural purposes; 3D panels, on the other hand, use a variety of materials to present a three-dimensional and uneven surface effect, mainly used for decorative purposes on walls and furniture.
A4: Absolutely. For outdoor use—especially in coastal areas with high salt-mist exposure—we strongly recommend using Grade 316 stainless steel, finished with a weather-resistant PVD coating and a specialized outdoor-grade clear protective lacquer. This combination provides resistance against UV radiation and salt-mist corrosion, ensuring the material remains rust-free over the long term.
A5：Water Ripple Sheets: Typically produced through continuous mechanical pressing, these feature a fluid, wave-like pattern. They are ideal for large-scale ceiling applications, where they create a soft, diffuse reflection of light.
Hand-Hammered Sheets: Crafted through manual forging, these feature a texture defined by distinct facets and indentations. They offer a stronger sense of three-dimensionality and a tactile, artisanal quality—making them perfect for feature walls, reception desks, building entrances, or luxury partitions that serve as visual focal points at close range.
Request Project Pricing & Samples !
From custom surface treatments to structural metal fabrication, JYF Metal works closely with architects, contractors, and design teams worldwide. Send us your project specifications or CAD files—our engineering team will review your requirements and provide a competitive quote within 24 hours.
